HB01 High Bay
1.Smart plug & play system without wiring for build-in sensor
2.Save SKU
3.Both motion sensor and PIR sensor optional
4.High Efficiency up to 170lm/W
5.5 years warranty
Inquire Now
Description Parameter
Product Video
The new generation Highbay Future HB09 integrates state-of-the-art LED lighting with a smart plug & play system for build-in sensor without wiring, which enables you to save SKU and fewer inventories. With high efficiency output 170lm/w, it can reach 40800 lumen at most, and helps to maximum your energy saving in a simple way. Both motion sensor and PIR sensor can be provided, and the same type of remote controller can work with both motion and PIR sensor. Easy to install, easy for your inventory plan, and easy to use, Future HB09 highbay is a smart way to light up your business.
Options
-1-10V dimmable, Dali dimmable
-PC lens 90� & PC cover 120�
-PC reflector
Certificates
-American market: UL, DLC Premium, cUL
-European market: TUV,CE (EMC, LVD, RoHS)
-Australian market: SAA, C-Tick, RCM

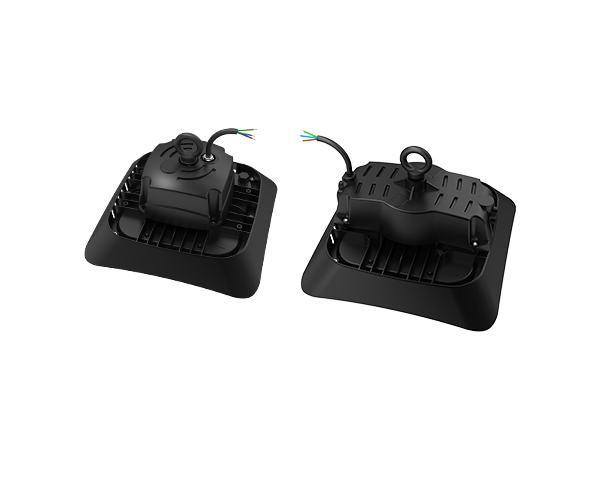

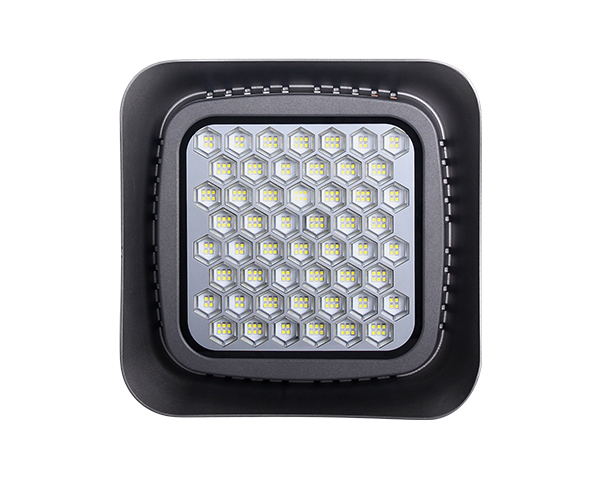

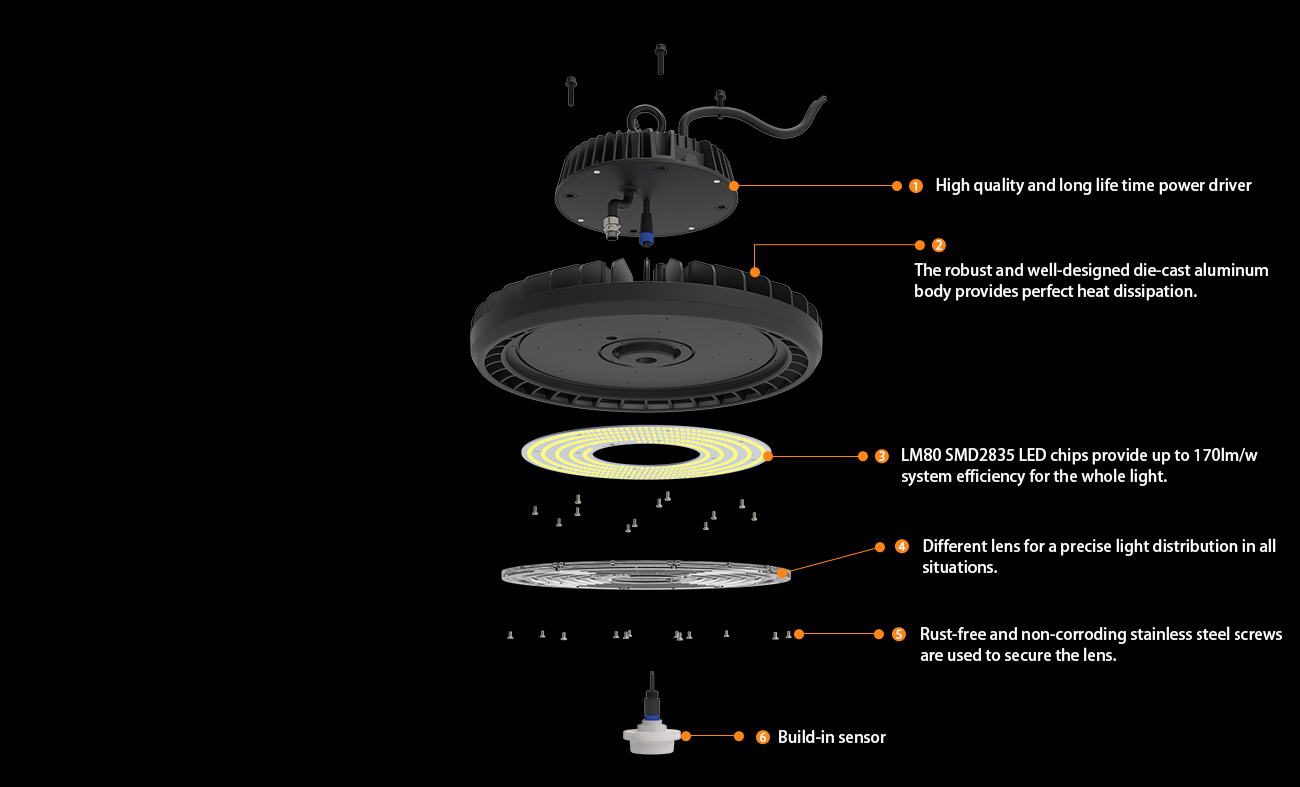

Product Details
Installation
-

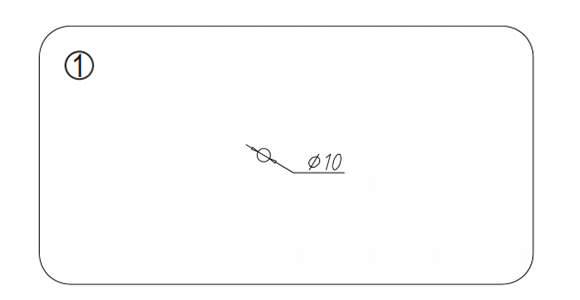

1. 1. Drill a hole in the ceiling
-

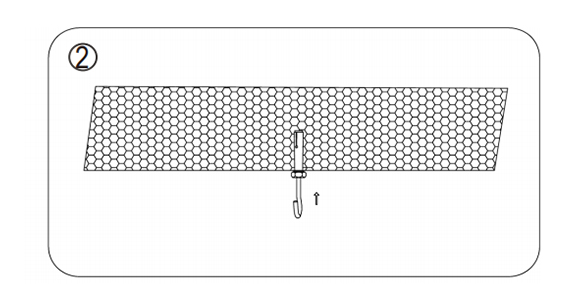

2. 2. Push in the hook
-

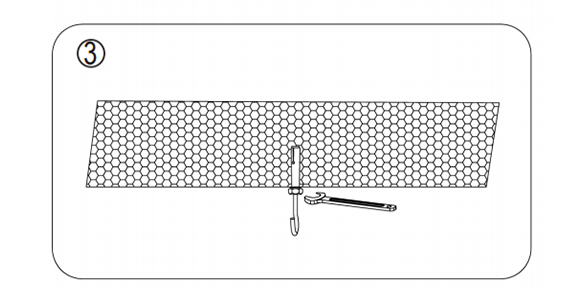

3.3.Secure the hook by tightening the nut
-

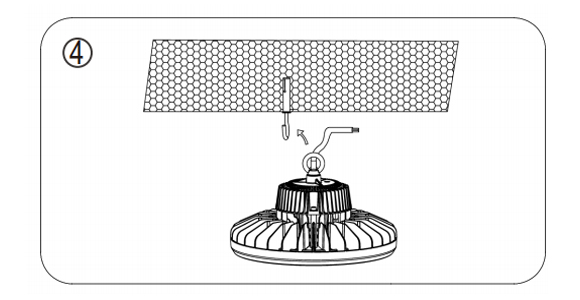

4. 4. Hang the fixture on the hook
-

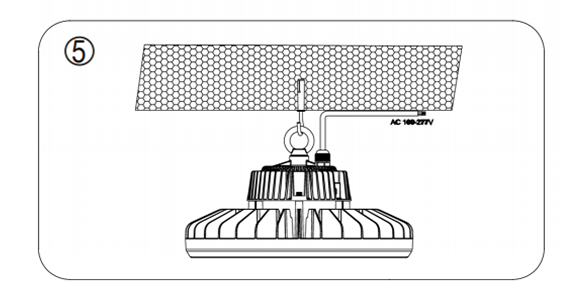

5. 5. Connect the fixture to the power line
Area of application
Warehouse,Hall,Factories,Sport field
-
Warehouse
-
Hall
-
Factories
-
Sport field
Standard lumen (140lm/W) Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI HB01-100W 100W AC100~277V
50~60Hz140�10 14000�1000 90�/120� 168 PCS
1W 3030>70 HB01-150W 150W 140�10 21000�1500 168 PCS
1W 3030HB01-200W 200W 140�10 28000�2000 252 PCS
1W 3030Lumen Plus (170lm/W) Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI HB01-100W 100W AC100~277V
50~60Hz170�10 17000�1000 90�/120� 210 PCS
1W 2835>70 HB01-150W 150W 170�10 25500�1500 315 PCS
1W 2835HB01-200W 200W 170�10 34000�2000 405 PCS
1W 2835Electrical data Photometrical data Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K Power factor ? >0.95 Color rendering index Ra >70 Efficiency in % >91% Standard deviation of color matching <5 Start time (0.2s / 0.5s / � ) 0.1S UGR (Unified Glare Rating) <27 Warm-up time to 60 % (1.5s / 2s / � ) 0.5S Available beam angles 90�/120� Standards & Certification Temperatures & operating conditions Type of protection IP65 Heatsink temperature 5~+70? Tested dielectric strength 3.75KVac Ambient temperature -30~+55? Safety features Open circuit protection;
short circuit protection ;
overvoltage protectionStorage temperature -40~+80? Certificates American market: UL, DLC Premium, cUL
European market: TUV,CE (EMC, LVD, RoHS)

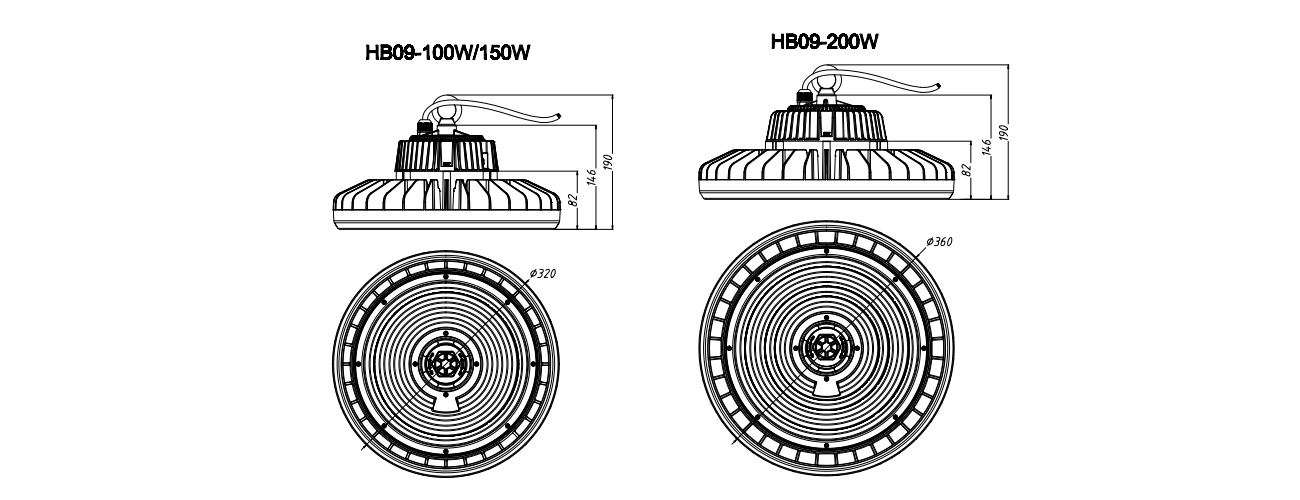

Australian market: SAA, C-Tick, RCMEnergy efficiency class A+&A++ Lifespan Features/Capabilities and additional product data Rated nominal Lifetime 50,000hours Base/Socket Directly wired Switching cycles 100,000 times Dimmable 1-10V dimmable Lumen maintenance at e.o.l. 70% Packing Information Model Dimension CTN SIZE(mm) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg) HB09-100W/150W ?380*188 37*37*23 1PCS 3.8 4.8 HB09-200W ?360*188 41*41*23 1PCS 5.3 6.5 Product Dimension

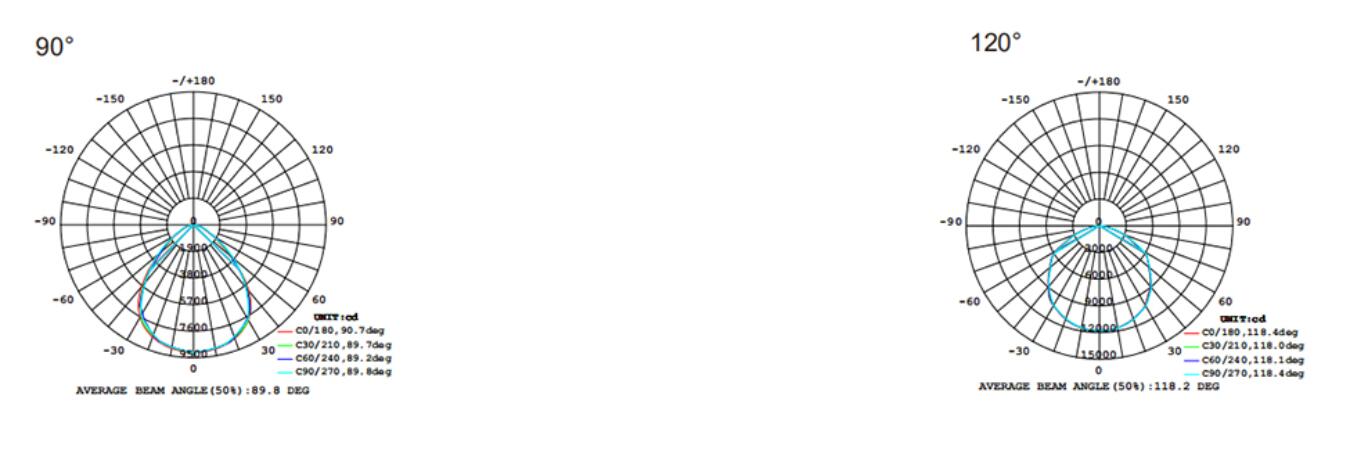

Light Distribution Curve
