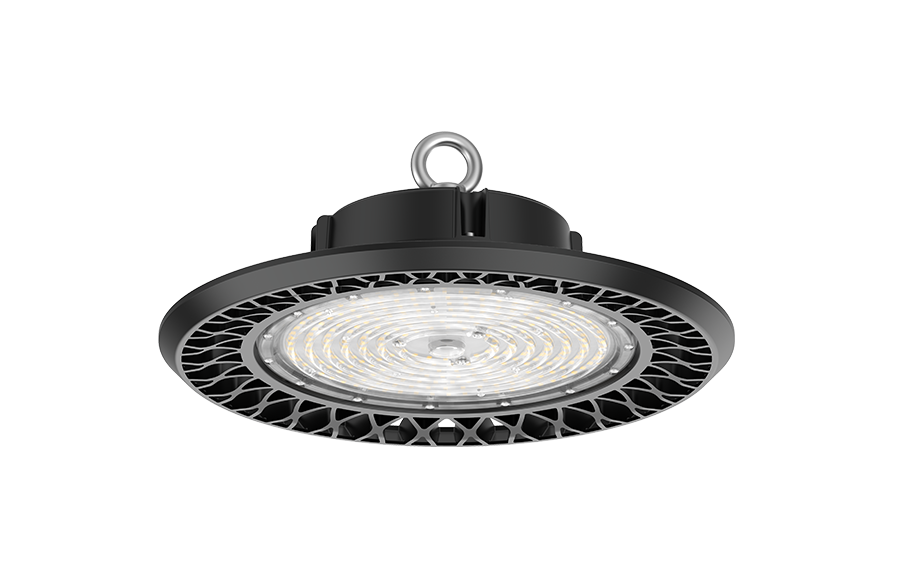

HB02 High Bay
Very energy efficient - up to 180 lm/w
Very high Luminous flux - up to 34.000lm
Durable and compact low-profile housing design
IP65 for indoor and outdoor applications
5 years warranty
Inquire Now
Description Parameter
Product Video
The HB07 HERO Highbay Series are designed for industrial lighting adopting the newest LED lighting technology with 180 lm/w light efficiency. High grade materials and perfect workmanship provide excellent cooling abilities and a long lifespan with 5 year warranty.
Options
-Optional Meanwell ELG driver available
-1-10V or DALI dimmable driver available

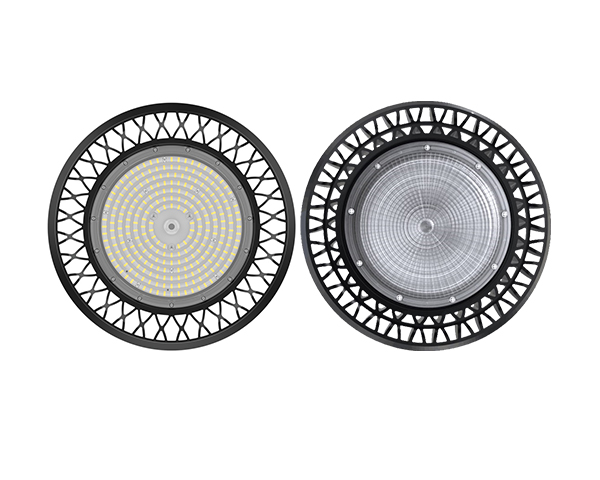

-Milky PC cover available upon request
-Microwave motion sensor available
-Zigbee is available
Certificates
-American market: UL, cUL, DLC
-European market: CE(EMC,LVD), RoHS, TUV
-Australian market: SAA

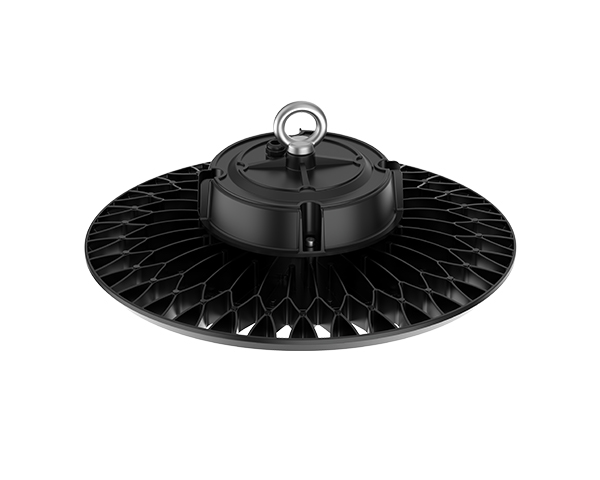

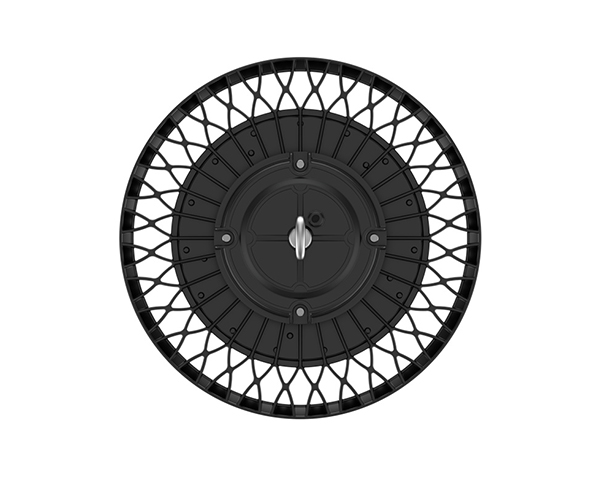

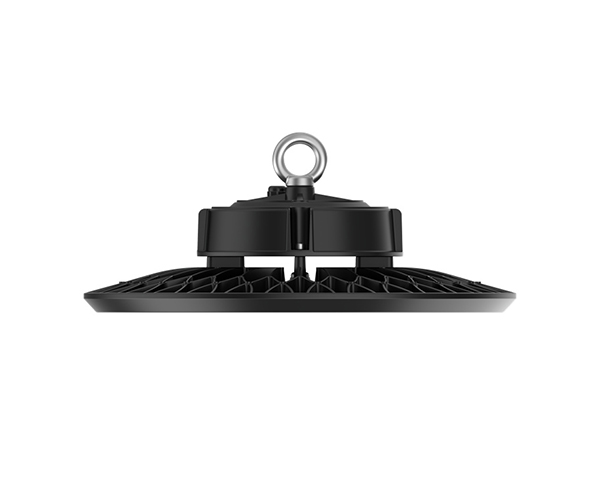

Product Details
Installation
-

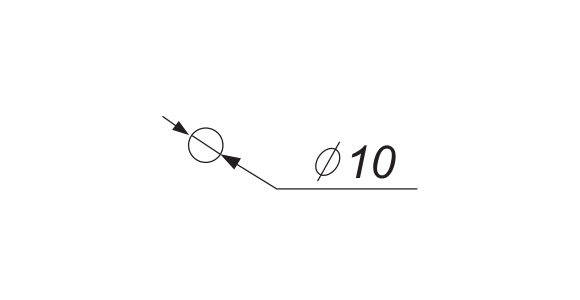

1. 1. Drill a hole in the ceiling
-

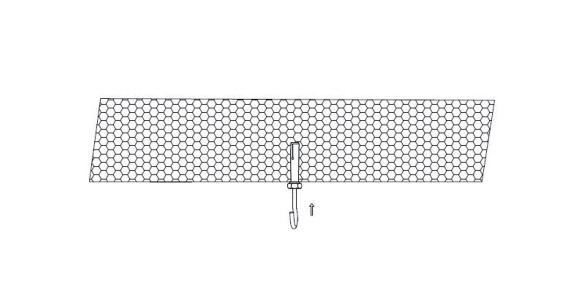

2. 2. Push in the hook
-

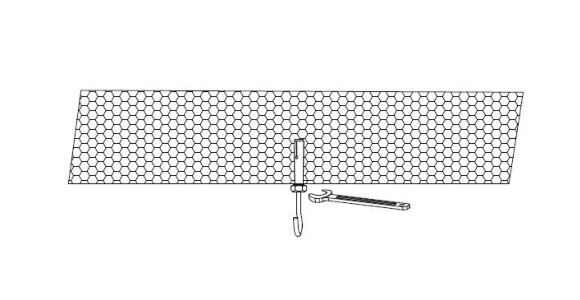

3.3. Secure the hook by tightening the nut
-

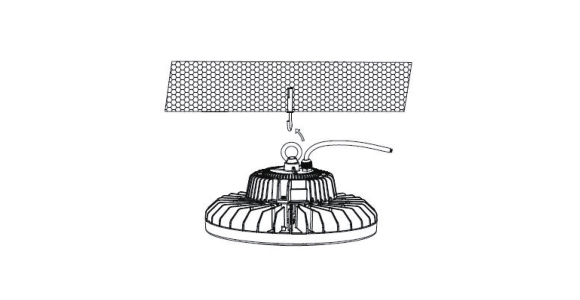

4. 4. Hang the fixture on the hook
-

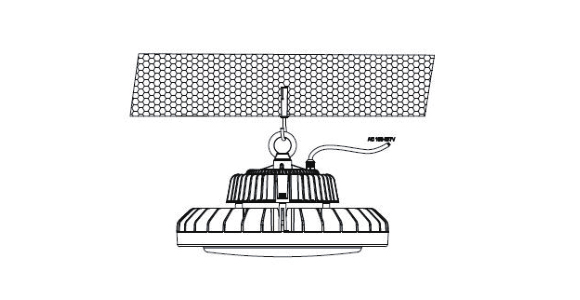

5. 5. Connect the fixture to the power line
Area of application
Warehouse,Hall,Factories,Sport field
-
Warehouse
-
Hall
-
Factories
-
Sport field
Standard lumen (130lm/W) Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI HB07-100W 100W AC100~277V
50~60Hz130�10 13000�1000 110� 176 PCS
1W 2835>80 HB07-150W 150W 130�10 19500�1500 272 PCS
1W 2835HB07-200W 200W 130�10 26000�2000 368 PCS
1W 2835Lumen Plus (150lm/W) Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI HB07-100W 100W AC100~277V
50~60Hz150�10 15000�1000 110� 252 PCS
1W 2835>70 HB07-150W 150W 150�10 22500�1500 330 PCS
1W 2835HB07-200W 200W 150�10 30000�2000 440 PCS
1W 2835Lumen Plus + (180lm/W) Model Nominal wattages (W) Nominal voltage Rated luminous efficacy (lm/w) Nominal luminous flux (lumen) Beam Angle LED Quantity CRI HB07-100W 100W AC100~277V
50~60Hz180�10 18000�1000 110� 306 PCS
1W 2835>70 HB07-150W 150W 180�10 27000�1500 459 PCS
1W 2835HB07-200W 200W 180�10 36000�2000 612 PCS
1W 2835Electrical data Photometrical data Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K Power factor ? >0.95 Color rendering index Ra >80 or >70 Efficiency in % >91% Standard deviation of color matching <5 Start time (0.2s / 0.5s / � ) 0.1S UGR (Unified Glare Rating) <30 Warm-up time to 60 % (1.5s / 2s / � ) 0.5S Available beam angles 60�/90�/110� Standards & Certification Temperatures & operating conditions Type of protection IP65 Heatsink temperature 5~+70? Tested dielectric strength 3.75KVac Ambient temperature -30~+55? Safety features Open circuit protection;
short circuit protection ;
overvoltage protectionStorage temperature -40~+80? Certificates UL, cUL, DLC, CE, RoHS, TUV, SAA Energy efficiency class A+ Lifespan Features/Capabilities and additional product data Rated nominal Lifetime 50,000hours Base/Socket Directly wired Switching cycles 100,000 times Dimmable 1-10V dimmable / DALI dimmable Lumen maintenance at e.o.l. 70% Packing Information Model Dimension CTN SIZE(mm) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg) HB07-100W/150W ?280*188 36*35*27 1PCS 3.5 4.5 HB07-200W ?320*188 39*36*27 1PCS 4.3 5.5 Product Dimension
Light Distribution Curve
