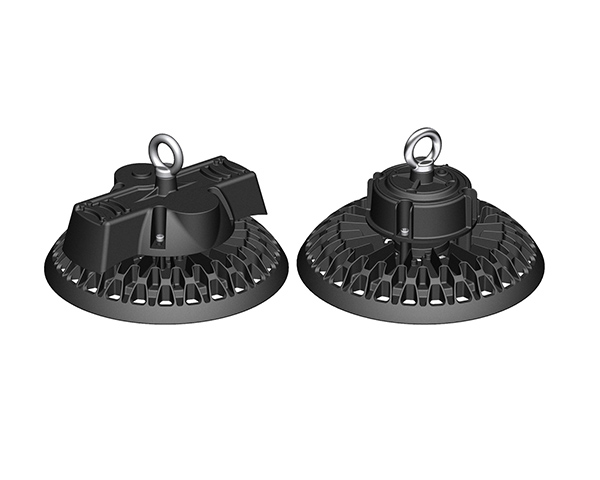

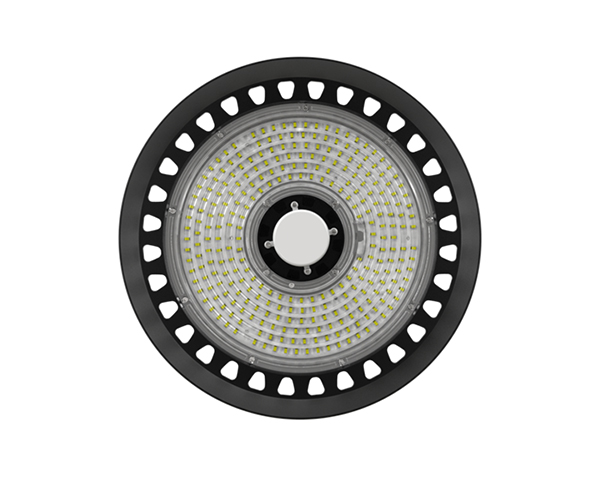

HB03 High Bay
1.Highly energy efficient -> up to 150 lm/w
2.High Luminous flux -> up to 45000 lm
3.Perfectly suitable for industrial use due to IP65
4.Space between driver housing and lamp body to prevent heat accumulation
5.D-Mark tested for the use in paper production, wood processing etc
6.5 years warranty standard, 10 years warranty optional
Inquire Now
Description Parameter
Product Video
FYT Skybay�s are designed for industrial lighting adopting the newest LED lighting technology, with longer lifespan, lower maintenance cost and higher efficiency. Thanks to several different covers, lenses and reflectors these UFO high bay lights are very well suited for most factories, warehouses, Exhibition halls and showrooms. High grade materials and perfect workmanship provide excellent cooling abilities and a long lifespan.With 150lm/W and up to 45000 lumen they provide a very efficient way to replace all sorts of traditional HID lamps.
Options
-Optional Mean well driver available
-1-10V dimmable and DALI available
-Different covers available: clear glass, clear PC and PC lens
-Additional reflector is available
-Microwave motion sensor available
-Mounting bracket for ceiling or wall installation
-Zigbee is available
Certificates
-American market: UL, cUL, DLC
-European market: TUV, ENEC, CB, CE(EMC,LVD), RoHS, D-Mark
-Australian market: SAA

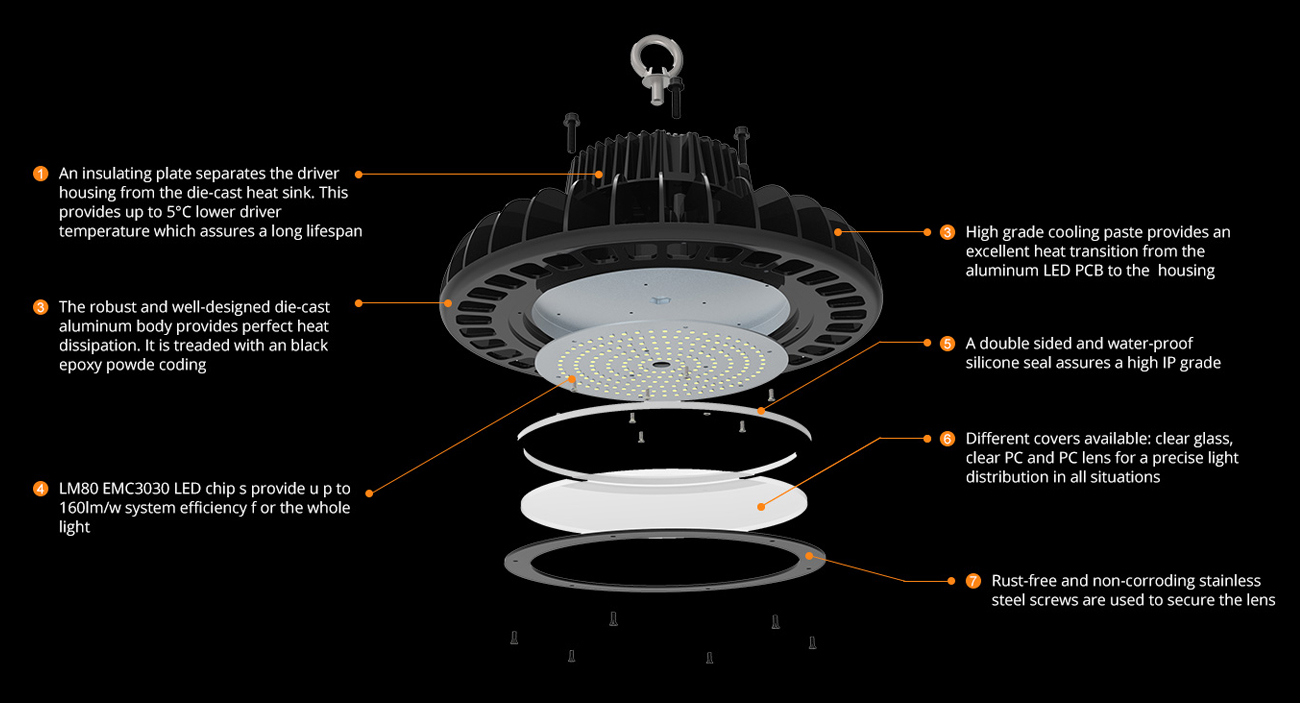

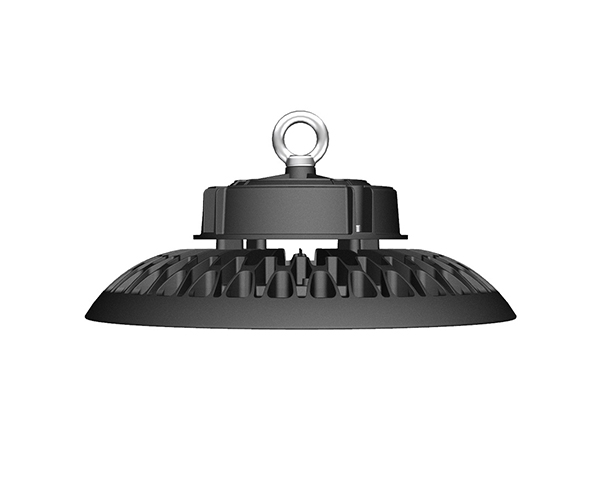

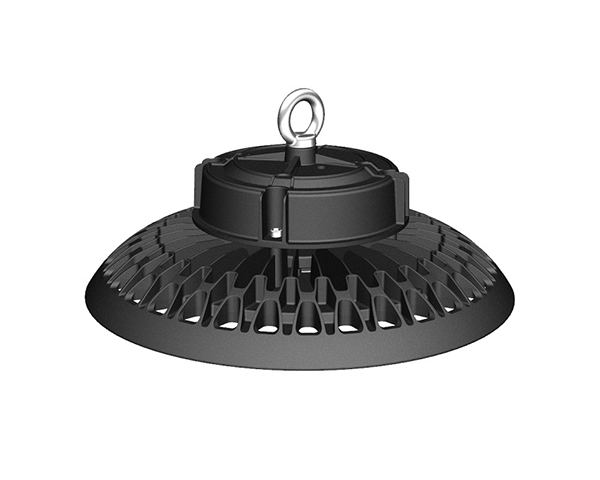

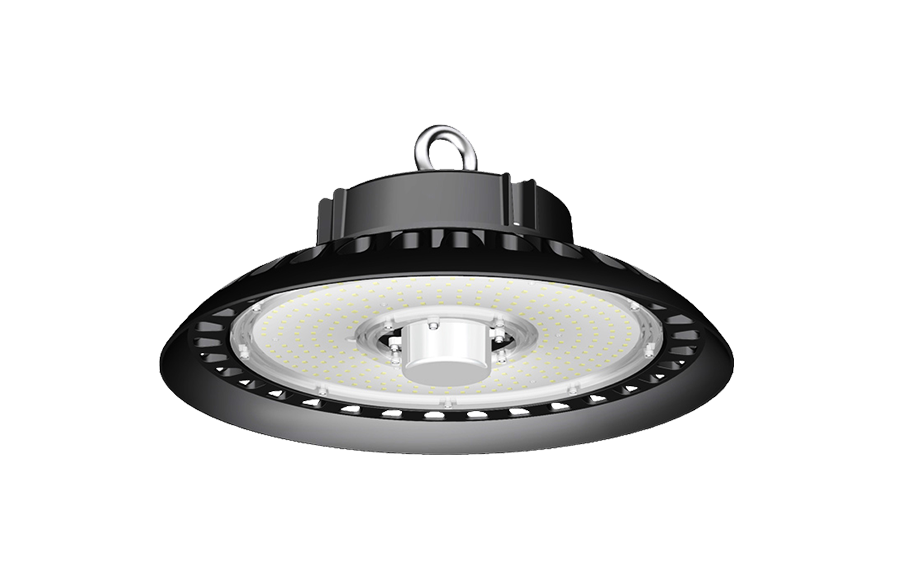

Product Details

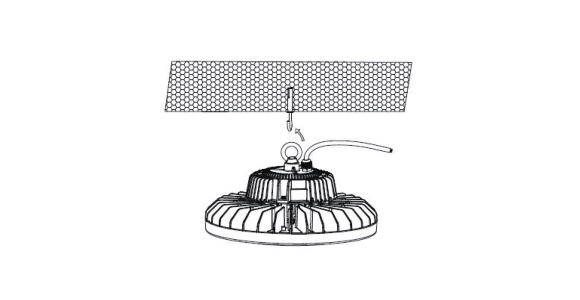

Installation
-

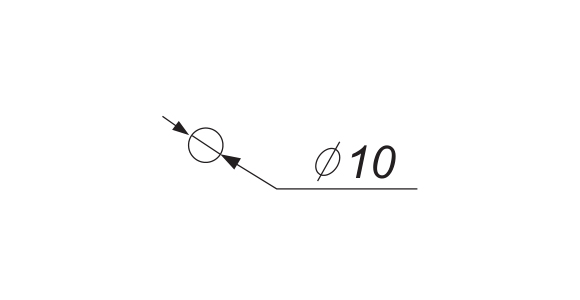

1. 1. Drill a hole in the ceiling
-

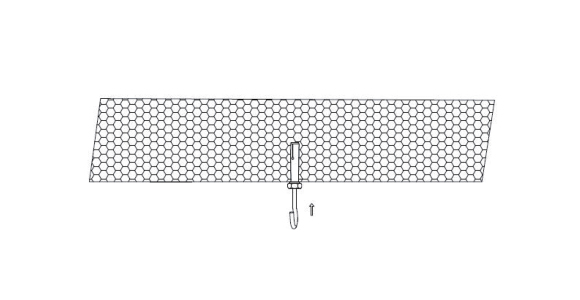

2. 2. Push in the hook
-

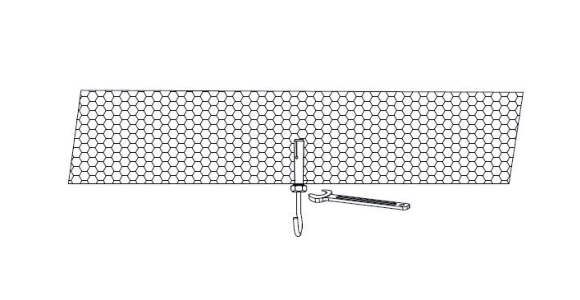

3.3.Secure the hook by tightening the nut
-

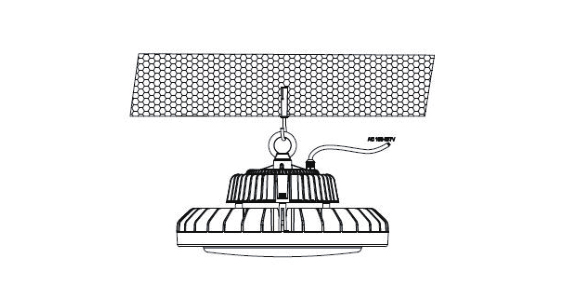

4. 4. Hang the fixture on the hook
-
5. 5. Connect the fixture to the power line
Area of application
Warehouse,Hall,Factories,Sport field
-
Warehouse
-
Hall
-
Factories
-
Sport field
130-140lm/w, 5 year warranty Model Size Rated Power Input Voltage Color Temp Rated Luminous Flux (lumen) CRI Materials Beam Angel Cover IP Grade LED Quantity HB03-100W Φ280*175mm 100W AC100~277V
50~60Hz3000K
4000K
5000K
6000K14000lm+/-10% >70 Aluminum & Glass Cover 110° Clear glass IP65 112pcs EMC3030 HB03-150W Ф320*177mm 150W 21000lm+/-10% >70 168pcs EMC3030 HB03-200W Φ365*180mm 200W 28000lm+/-10% >70 224pcs EMC3030 HB03-300W Ф400*260mm 300W 42000lm+/-10% >70 336pcs EMC3030 150-160lm/w, 5 year warranty Model Size Rated Power Input Voltage Color Temp Rated Luminous Flux (lumen) CRI Materials Beam Angel Cover IP Grade LED Quantity HB03-100W Φ280*175mm 100W AC100~277V
50~60Hz3000K
4000K
5000K
6000K15500lm+/-10% >70 Aluminum & Glass Cover 110° Clear glass IP65 196pcs EMC3030 HB03-150W Φ320*177mm 150W 22500lm+/-10% >70 252pcs EMC3030 HB03-200W Φ365*180mm 200W 31000lm+/-10% >70 336pcs EMC3030 HB03-300W Φ400*260mm 300W 46500lm+/-10% >70 420pcs EMC3030 Electrical data Photometrical data Operating frequency 47-63HZ Available light colors warm white;natural white;daylight white Type of current AC100-277V Available color temperatures 3000K;4000K;5000K;6000K Power factor λ >0.9 Color rendering index Ra standard Ra>70, Ra>80 optional Efficiency in % >92% Standard deviation of color matching <5 Start time (0.2s / 0.5s / ... ) 0.1S UGR (Unified Glare Rating) <27 Warm-up time to 60 % (1.5s / 2s / ... ) 0.5S Available beam angles 110°/90°/60°/30° Standards & Certification Temperatures & operating conditions Type of protection IP65 Heatsink temperature -20~+69℃ Tested dielectric strength 3.75KVac Ambient temperature -30~+40℃ Safety features Open circuit protection;
short circuit protection ;
overvoltage protectionStorage temperature -40~+80℃ Certificates American market: UL, DLC Premium, cUL
European market: TUV, GS, CB, D Mark, CE

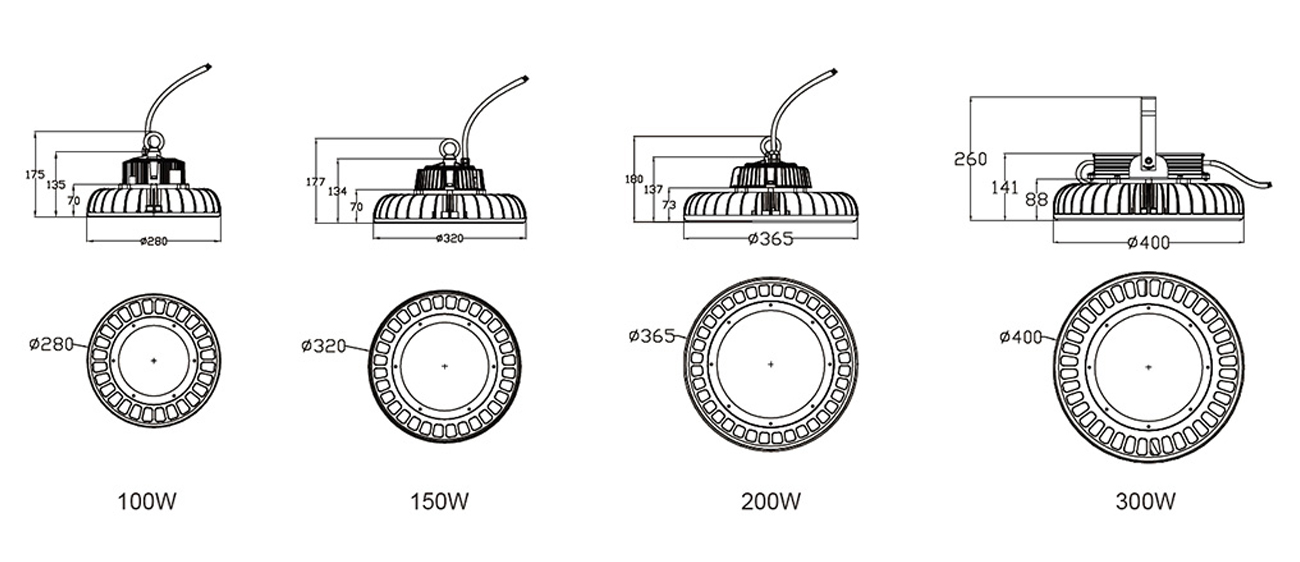

Australian market: SAA, CTick,RMCEnergy efficiency class A+ & A++ Lifespan Features/Capabilities and additional product data Rated nominal Lifetime 50,000 hours standard, 100,000 hours optional Base/Socket Directly wired Switching cycles 100,000 times Dimmable 1-10V dimmable?DALI dimmable Lumen maintenance at e.o.l. L80 / B10 @50,000H, L70 / B20 @100,000H Packing Information Model Dimension CTN SIZE(CM) QTY/CTN Net Weight/pcs(kg) Gross Weight /CTN(kg) HB03-100W 280*175MM 40.5*43*23 1PCS 4.1 5.4 HB03-150W 320*177MM 44.5*43*23 1PCS 5.1 5.5 HB03-200W 365**180MM 50*43*23 1PCS 6.3 7.8 Product Dimension

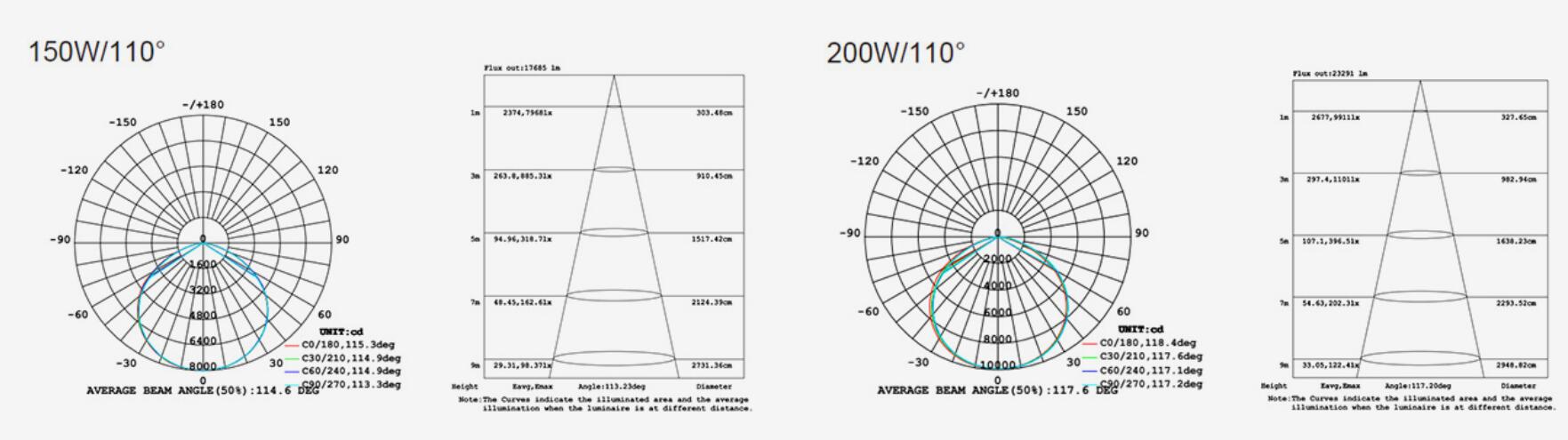

Light Distribution Curve
